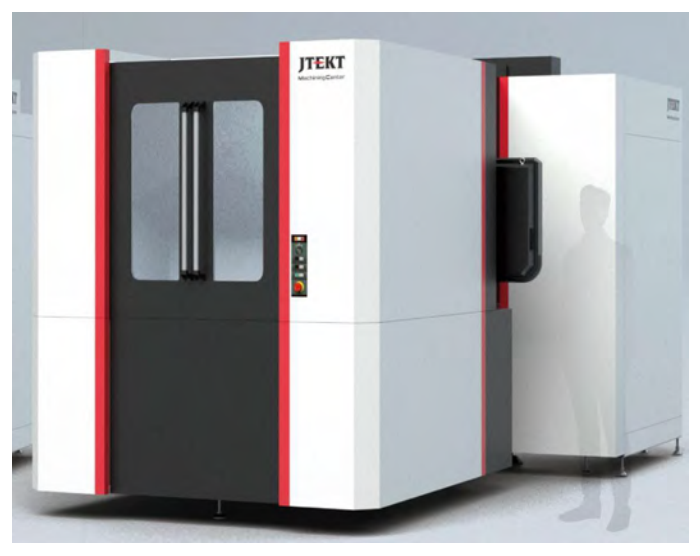

Dati Tecnici
Area lavoro FH5000S-i
Axis stroke X (column) 800 mm
Axis stroke Y (spindle head) 800 mm
Axis stroke Z (table) 880 mm
Distanza ➔ table center 100 ~ 980 mm
Spindle center ➔ pallet surface 50 ~ 850 mm
Workpiece (swing diameter x height) Ø 900 x 1,100 mmle
Spindle FH5000S-i
speed min-1 50~ 15,000
Spindle taper HSK63
Front bearing Ø (mm) 85
Output (kW)30 min ED / continuous 22/18,5
Automatic tool changer FH5500
Tool holding capacity 60
Tool selection Absolute address
Max. tool weight 8 kg
Max. tool dimensions Ø 75 ( 250 )
(Ø x length) mm (Ø 140 x 510)
1
Tool changing time, tool to tool 0,9 sec
Tool changing time, chip to chip 2,4 sec
DimensionsDimensions FH5000S-i
Machine height mm 3,020
Floor space W x D mm 2.230 x 4.225
Weight 15,500 kg
Pallet changer and table FH5000S-i
Number of pallets 2
Dimensions 500 x 500 mm
Indexing angle 0.001°
Indexing time, 0–90° 0.7sec
Pallet height from fl oor 1,100 mm ( Rgv 1200 )
Pallet change time 10.5 s
Max. load on pallet 1000 kg
Axis drives FH5000S-i
Rapid traverse rate 60 m/min
Cutting feed rate mm/min 1 ~ 30,000
Acceleration X, Y :1 G, Z: 1.2 G
Guides cylindrical roller slides
Ball screw Ø (X, Y, Z) 40 mm Precision
FH5000S-i
Positioning accuracy ±0.003 mm
Repeatability ±0.0015 mm
Table positioning accuracy ±7 WS
Table repeatability ±3 WS
